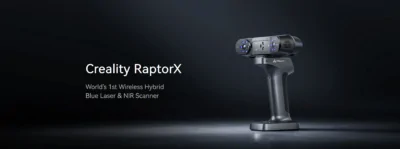

Creality RaptorX 3D Scanner Egypt
World’s 1st Wireless Hybrid Blue Laser & NIR Scanner
Key Features
34+7 Blue Laser Lines for Efficiency and Details
The 34 cross laser lines are ideal for scanning medium to large objects quickly, utilizing an advanced laser line encoding and decoding algorithm to handle denser multi-beam lasers. The 7 parallel laser lines provide partial HD scanning, improving both the efficiency and detail capture in 3D scanning.
High Efficiency, Reliable, Accurate Scanning
Easily and quickly scan medium to large objects with reliable accuracy – even scan a whole car in one go. The laser array arrangement enables rapid and effortless capture of complete and accurate 3D data from medium to large objects.
High-quality Fast Scan Speed
The 34 cross laser lines can process up to 1,020,000 points per second, making it ideal for quickly scanning medium to large objects.
7 Laser Lines for Partial HD Scanning
Each laser line is as fine as 0.1mm, capturing sharper edges and richer details. Equipped with a 2.3-megapixel 3D imaging camera, it scans and restores fine details with high accuracy.
Volumetric Accuracy
0.02mm+0.06mm/m
High-speed Scanning Beyond Your Imagination
Laser Line Scanning
Achieve scan frame rates of up to 60fps
Infrared Structured Light Scanning
Scan at frame rates of up to 30fps
Portable Wireless Scanner
RaptorX features a wireless handle with seamless data transmission, redefining portability in blue laser 3D scanning.
Wi-Fi 6 AX6000 Fast Data Transmission
Equipped with an advanced lossless data compression algorithm, RaptorX allows you to transfer scans quickly and easily over Wi-Fi 6 from the scanner to your computer.
Large Capacity & Fast Charging
Charges to 80% in just 1.5 hours, making outdoor scanning more convenient and worry-free. Large capacity 35400mWh battery (Airplane Safe).
Magnetic Quick Setup
Battery indicator for easy monitoring
NIR Structured Light Scanning
Markerless Scanning
Equipped with One-Shot 3D imaging technology, the Creality RaptorX is naturally stabilized and less likely to lose tracking. Fast backtracking speed ensures smoother handheld scanning.
Unique Face & Body Algorithm
Face & body mode is equipped with a unique face mapping algorithm that captures more details and easily scans hair. A human body scan only needs as quick as 2 minutes.
High Performance Structure, Details Revealed
- 2.3 Million Pixel 3D Imaging Camera
- Low distortion lens, less than 5‰
- φ20mm large depth of field lens
- 9-elements glass lens
- Metal lens barrel and holder
Advanced temperature compensation algorithm improves temperature stability and ensures accuracy.
Objects between 0.2-157″/ 5-4000mm
Combining blue laser lines with infrared structured light, RaptorX can scan objects ranging in size from 5×5×5 mm³ to 4000×4000×4000 mm³. Effortlessly scan engineering parts, molds, human bodies, automobile components, and more.
Laser Line Scanning
Minimum scan size: 5*5*5 mm³, Maximum scan size: 4000*4000*4000 mm³.
NIR Structured Light Scanning
Scanning objects ranging from 150*150*150mm³-2000*2000*2000mm³.
Wider Applications, Better Performance
Enhanced Scanning Capabilities
Outdoor Scanning
Blue Laser with strong environmental resistance, delivers outstanding performance even in outdoor environments.
7-line laser: ≤50,000 lux
34 cross lines: ≤100,000 lux
Scan without Sprays
With strong material adaptability, you can scan black/metal objects without sprays.
Anti-shake
Equipped with One-Shot 3D imaging technology, RaptorX is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.
Peaceful Scanning with LED Lights
Blue light provides supplementary light for laser line scanning. White light is used to enhance the brightness of color textures.
24-bit Full-Color Scanning in All Modes
Capture rich color details in every scanning mode for complete object reproduction.
Lightweight and Portable
Weighs only 405g
Ring indicator light
Paired with buttons for straightforward operation
Anti-slip sleeve and detachable lanyard
New Intuitive Software with Powerful Features
CrealityScan is a professional 3D scanning software designed for exceptional user-friendliness and robust image and point cloud processing capabilities. With step-by-step tutorials, one-click model processing, and advanced editing features, it simplifies your scanning journey from start to finish.
Seamless Integration to Inspection, Design, 3D Printing Software
The scan data can be imported into mainstream 3D inspection and design software programs, such as Geomagic Control X, Geomagic Design X, and Verisurf Inspect with one click, improving workflow efficiency.
Applications
Product Comparison: RaptorX vs Raptor
| Feature | Creality RaptorX | Creality Raptor |
|---|---|---|
| Scanning Mode | 7 blue parallel laser lines, 34 blue parallel laser lines (cross), NIR | 7 blue parallel laser lines, NIR |
| Accuracy up to | 0.02mm | 0.05mm |
| Volumetric Accuracy | 0.02mm+0.06mm/m | 0.05mm+0.1mm/m |
| Scanning rate | Up to 1,020,000 measurements/s | Up to 420,000 measurements/s |
| Working distance | 200-600mm (laser lines) | 150-400mm (laser lines) |
| Outdoor Scanning | ≤100,000 lux (34 cross lines) | ≤50,000 lux |
| Wireless Scanning | Built-in | Requires accessories |
Creality RaptorX 3D Scanner Egypt: Revolutionary Hybrid Scanning Technology
Creality RaptorX 3D Scanner Egypt represents the pinnacle of advanced 3D scanning technology, combining multiple scanning methods in a wireless portable device to meet diverse professional needs across Egypt.
Revolutionary 34+7 Blue Laser Lines System
Creality RaptorX 3D Scanner Egypt features an innovative multi-laser configuration with 34 cross laser lines for rapidly scanning medium to large objects and 7 parallel laser lines (as fine as 0.1mm) for capturing high-definition details. This advanced arrangement utilizes sophisticated laser line encoding and decoding algorithms to process dense multi-beam data with exceptional efficiency.
Unprecedented Scanning Speed
Creality RaptorX 3D Scanner Egypt achieves remarkable processing rates up to 1,020,000 points per second with its 34 cross laser lines, while maintaining frame rates of up to 60fps in laser scanning mode. The NIR structured light scanning operates at an impressive 30fps, enabling rapid capture of even large objects like entire vehicles in a single scanning session.
Exceptional Accuracy and Detail
Creality RaptorX 3D Scanner Egypt delivers precision up to 0.02mm with volumetric accuracy of 0.02mm+0.06mm/m, significantly outperforming other scanners in its class. The integrated 2.3-megapixel 3D imaging camera with low-distortion lens (less than 5‰) and 9-element glass construction captures fine details with remarkable clarity.
True Wireless Operation
Creality RaptorX 3D Scanner Egypt features a genuinely wireless design with Wi-Fi 6 AX6000 fast data transmission and advanced lossless compression algorithms for seamless scanning without tethering. The high-capacity 35400mWh battery (airplane safe) charges to 80% in just 1.5 hours and supports extended scanning sessions, making outdoor applications convenient and worry-free.
Dual-Technology Scanning Options
Creality RaptorX 3D Scanner Egypt combines blue laser scanning and NIR structured light technologies in one device. The blue laser excels at capturing sharp edges and detailed features, while the NIR structured light provides natural stabilization with One-Shot 3D imaging for smoother handheld operation and less tracking loss.
Extraordinary Size Versatility
Creality RaptorX 3D Scanner Egypt accommodates an incredible range of object sizes from just 5×5×5mm to massive 4000×4000×4000mm dimensions with laser scanning, and 150×150×150mm to 2000×2000×2000mm with NIR structured light. This versatility makes it perfect for scanning everything from tiny engineering parts to entire automobile components.
Advanced Outdoor Scanning Capability
Creality RaptorX 3D Scanner Egypt performs excellently even in challenging lighting conditions with strong environmental resistance. The 7-line laser handles up to 50,000 lux environments, while the 34 cross lines maintain performance up to an impressive 100,000 lux, enabling effective outdoor scanning in bright conditions.
Spray-Free Scanning Technology
Creality RaptorX 3D Scanner Egypt eliminates the need for scanning sprays with its strong material adaptability, successfully capturing black and metal objects without additional preparation. This feature saves time, reduces costs, and maintains a cleaner working environment.
Specialized Face & Body Scanning
Creality RaptorX 3D Scanner Egypt includes unique face mapping algorithms that capture exceptional detail and easily scan challenging features like hair. Complete human body scans can be completed in as little as 2 minutes, making this scanner ideal for applications in fashion, art, and medical fields.
Intuitive Design and Operation
Creality RaptorX 3D Scanner Egypt weighs just 405g with an ergonomic design featuring an anti-slip sleeve, detachable lanyard, and convenient ring indicator lights paired with straightforward button controls. The scanner includes supplementary blue light for laser scanning and white light to enhance color texture capture.
Powerful CrealityScan Software
Creality RaptorX 3D Scanner Egypt comes with professional CrealityScan software offering exceptional user-friendliness and powerful processing capabilities. The software provides step-by-step tutorials, one-click model processing, and seamless integration with mainstream 3D inspection and design programs including Geomagic Control X, Geomagic Design X, and Verisurf Inspect.
Experience the future of professional 3D scanning with unmatched versatility, precision, and portability – order your Creality RaptorX 3D Scanner Egypt today!
